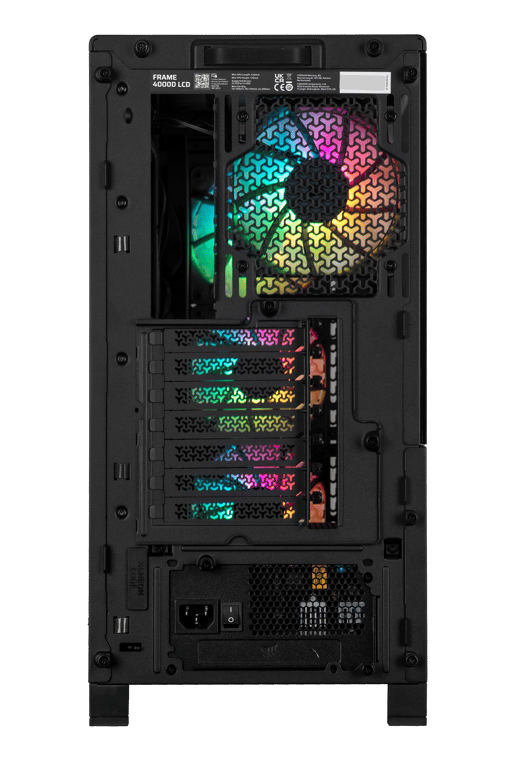

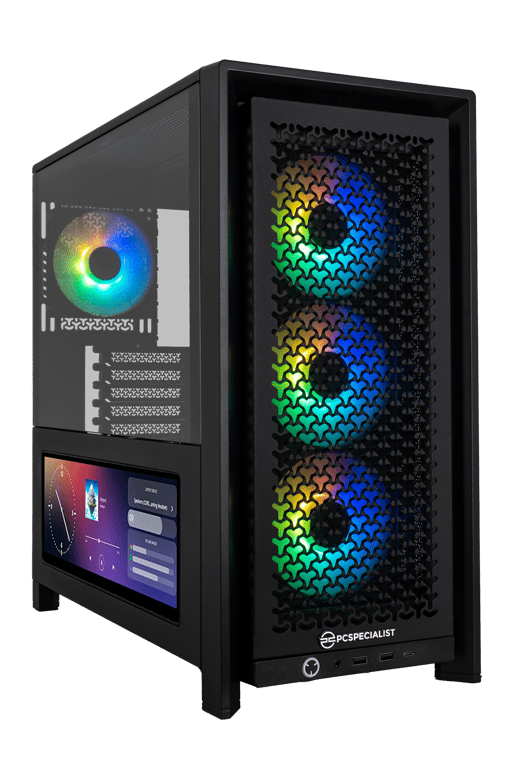

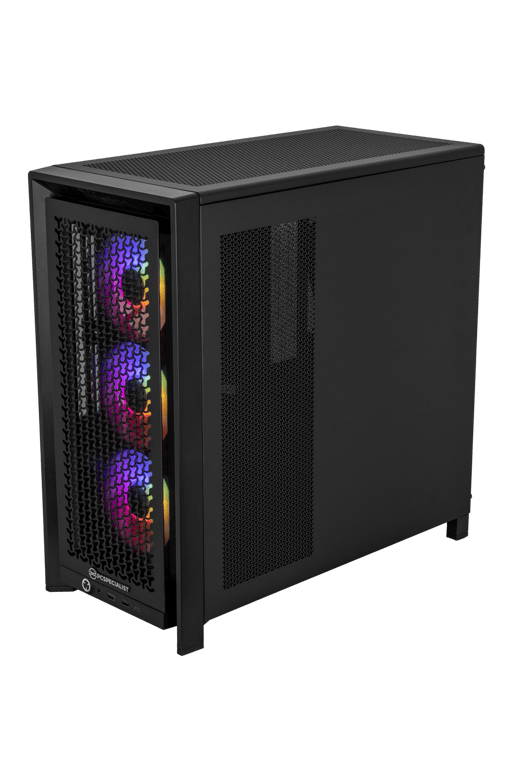

CORSAIR FRAME 4000D LCD RS
Dimensions & Weight
486mm x 490mm x 239mm
(Approx H x W x D)
12.36 Kg
(Approx H x W x D)
12.36 Kg
Colours
BLACK
Materials
Steel
Tempered Glass
Plastic
Tempered Glass
Plastic
Bays
2 x "Drive Trays" each supporting either 1 x HDD or 2 x SSD or 1 x Link Controller.
Top/Front USB & Audio
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C
1 x Combined 3.5mm Jack for Headsets
*This case is NOT the Corsair Premium version with 3 USB-C Front ports.
1 x USB 3.2 Gen2 Type-C
1 x Combined 3.5mm Jack for Headsets
*This case is NOT the Corsair Premium version with 3 USB-C Front ports.
Features
This leveled-up version of the FRAME 4000D includes a host of upgrades for peak performance with a pre-installed XENEON EDGE 14.5" LCD Touchscreen, more cooling power, updated front panel I/O, and increased rigidity for the ultimate mid-tower chassis.
Fans
Fan Support:
Front: 3 x 120mm / 2 x 140mm / 2 x 200mm
Top: 3 x 120mm / 2 x 140mm
Side: 3 x 120mm / 2 x 140mm
PSU Shroud: 2 x 120mm
Rear: 1 x 120mm / 1 x 140mm
Fans Included:
Front: 3 x 120mm Corsair RS120
Rear: 1 x 120mm Corsair RS120
Front: 3 x 120mm / 2 x 140mm / 2 x 200mm
Top: 3 x 120mm / 2 x 140mm
Side: 3 x 120mm / 2 x 140mm
PSU Shroud: 2 x 120mm
Rear: 1 x 120mm / 1 x 140mm
Fans Included:
Front: 3 x 120mm Corsair RS120
Rear: 1 x 120mm Corsair RS120
Radiator Support
Radiator Support
Front: Up to 360mm
Top: Up to 360mm*
Side: Up to 360mm
Rear: 120mm
*RAM height may foul top mounting radiators.
Front: Up to 360mm
Top: Up to 360mm*
Side: Up to 360mm
Rear: 120mm
*RAM height may foul top mounting radiators.
Suitability
Office PC, Gaming PC, Workstation, Streaming PC
Please note that all images are for illustrative purposes only and the actual product may vary slightly. Please refer to the description for the exact specification of what is included.
