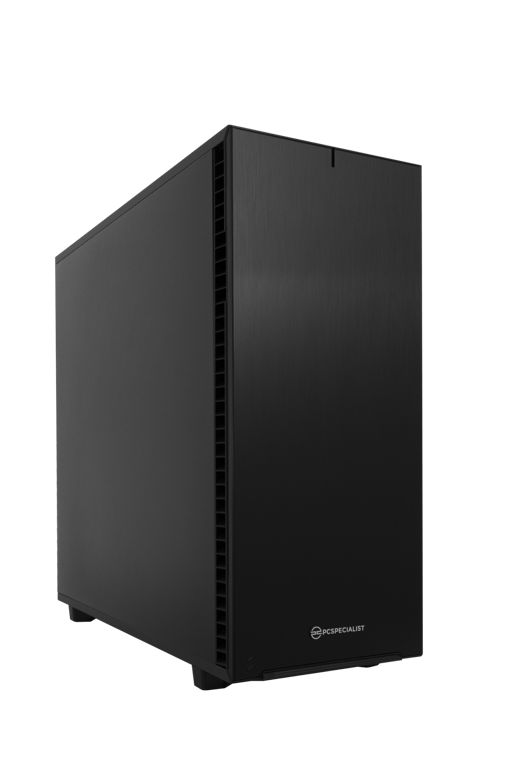

FRACTAL DEFINE 7
Dimensions & Weight
475 mm x 240 mm x 547 mm
(Approx H x W x D)
12.55 Kg
(Approx H x W x D)
12.55 Kg
Colours
Black
Materials
Steel
Bays
1 x 5.25"
6 x 3.5" / 2.5" brackets- 14 positions total*
2 x 2.5" brackets - 4 positions total*
*Additional brackets sold by Fractal.
6 x 3.5" / 2.5" brackets- 14 positions total*
2 x 2.5" brackets - 4 positions total*
*Additional brackets sold by Fractal.
Top/Front USB & Audio
1 x 3.1 Gen 2 Type-C
2 x USB 3.0
2 x USB 2.0
Independent Audio and Mic In
2 x USB 3.0
2 x USB 2.0
Independent Audio and Mic In
Features
Anodized aluminum front panel with reversible dual-handed hinges
Silence-optimized industrial sound-damped front, top, and side panels.
Replacement higher airflow top panel included.
Up to 14* x 3.5" / 2.5"and 4* x 2.5" drive capacity.
*see Bays
Silence-optimized industrial sound-damped front, top, and side panels.
Replacement higher airflow top panel included.
Up to 14* x 3.5" / 2.5"and 4* x 2.5" drive capacity.
*see Bays
Fans
Fan Support:
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 3 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Bottom: 2 x 120mm / 1 x 140mm
Fans Included:
Front: 2 x 140mm Dynamic X2 GP-14
Rear: 1 x 140mm Dynamic X2 GP-14
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 3 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Bottom: 2 x 120mm / 1 x 140mm
Fans Included:
Front: 2 x 140mm Dynamic X2 GP-14
Rear: 1 x 140mm Dynamic X2 GP-14
Radiator Support
Radiator Support
Front: Up to 360mm
Top: Up to 420mm
Rear: 120mm
Bottom: Up to 280mm
Front: Up to 360mm
Top: Up to 420mm
Rear: 120mm
Bottom: Up to 280mm
Suitability
Workstation, Gaming, Media Server
Please note that all images are for illustrative purposes only and the actual product may vary slightly. Please refer to the description for the exact specification of what is included.
